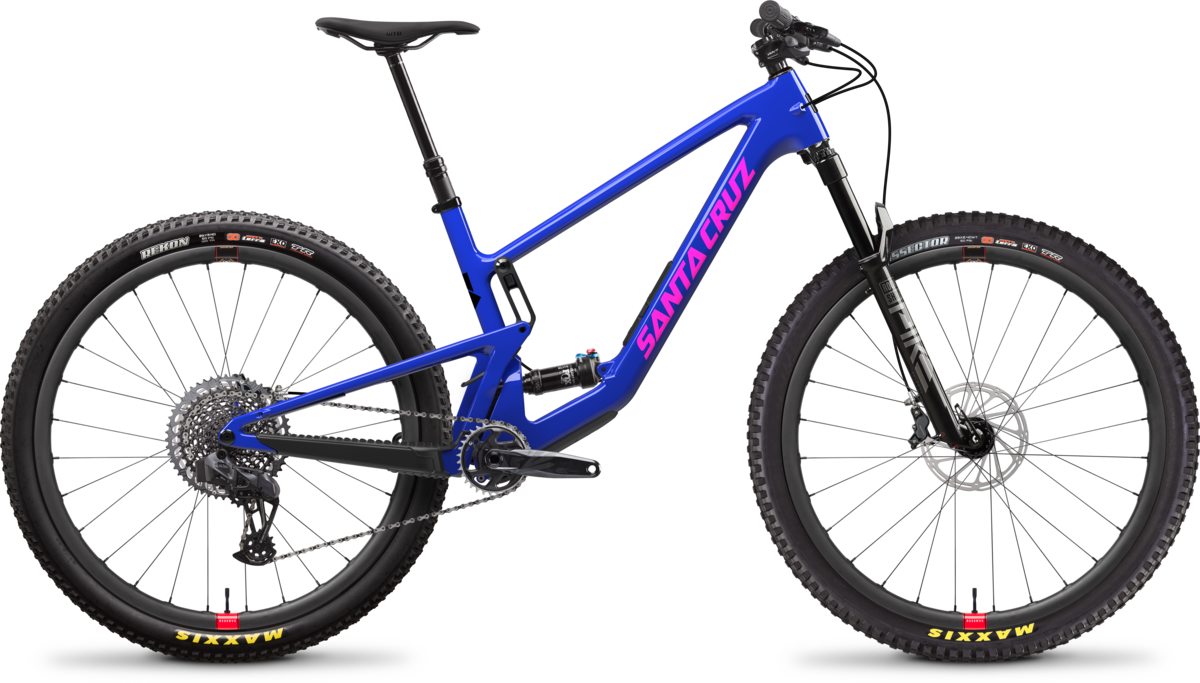

Santa Cruz Tallboy C GX AXS RSV 29
This item is currently not available.
Details
THE TRAIL BIKES THAT LOVE TO PLAY
The Santa Cruz Tallboy combines short travel efficiency with modern geometry to create a bike that's as up for the big climb as it is the big descent. These sporty 29ers are the perfect choice for riders considering a cross country bike but will likely never race. They climb efficiently, roll fast on the on the flats, and have some real capability for when the DH music goes from easy listening to rock-and-roll. Featuring a 130mm fork and 120mm of Virtual Pivot Point (VPP) rear suspension travel, Tallboy is sporty, capable, and fun.
High
Size | X-Small | Small | Medium | Large | X-Large | XX-Large |
---|---|---|---|---|---|---|
FLIP CHIP (hi/lo) | HI | HI | HI | HI | HI | HI |
REACH (mm) | 405 | 430 | 455 | 475 | 495 | 520 |
STACK (mm) | 601 | 610 | 619 | 628 | 646 | 656 |
HT ANGLE | 65.7° | 65.7° | 65.7° | 65.7° | 65.7° | 65.7° |
HT LENGTH (mm) | 95 | 105 | 115 | 125 | 145 | 155 |
ST ANGLE | 76° | 76.3° | 76.7° | 76.8° | 77° | 77.1° |
ST LENGTH (mm) | 370 | 380 | 405 | 430 | 460 | 500 |
REAR CENTER (mm) | 430 | 430 | 433 | 437 | 439 | 443 |
FRONT CENTER (mm) | 708 | 737 | 766 | 790 | 818 | 847 |
BB HEIGHT (mm) | 335 | 335 | 335 | 335 | 335 | 335 |
BB DROP (mm) | 38 | 38 | 38 | 38 | 38 | 38 |
WHEELBASE (mm) | 1138 | 1167 | 1199 | 1227 | 1257 | 1290 |
TT LENGTH (mm) | 555 | 579 | 602 | 622 | 644 | 671 |
STANDOVER (mm) | 680 | 693 | 696 | 698 | 698 | 701 |
Low
Size | X-Small | Small | Medium | Large | X-Large | XX-Large |
---|---|---|---|---|---|---|
FLIP CHIP (hi/lo) | LO | LO | LO | LO | LO | LO |
REACH (mm) | 403 | 428 | 453 | 473 | 493 | 518 |
STACK (mm) | 603 | 612 | 621 | 630 | 648 | 658 |
HT ANGLE | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° |
HT LENGTH (mm) | 95 | 105 | 115 | 125 | 145 | 155 |
ST ANGLE | 75.7° | 76° | 76.4° | 76.6° | 76.8° | 76.8° |
ST LENGTH (mm) | 370 | 380 | 405 | 430 | 460 | 500 |
REAR CENTER (mm) | 431 | 431 | 434 | 438 | 440 | 444 |
FRONT CENTER (mm) | 708 | 737 | 766 | 790 | 818 | 847 |
BB HEIGHT (mm) | 332 | 332 | 332 | 332 | 332 | 332 |
BB DROP (mm) | 41 | 41 | 41 | 41 | 41 | 41 |
WHEELBASE (mm) | 1138 | 1167 | 1199 | 1227 | 1258 | 1291 |
TT LENGTH (mm) | 556 | 580 | 603 | 623 | 645 | 671 |
STANDOVER (mm) | 676 | 691 | 693 | 695 | 695 | 698 |
Specs
Frame | Carbon C 29" 120mm Travel VPP™ |
---|---|
Fork | RockShox Pike Select+, 130mm |
Rear Shock | FOX Float Performance Elite DPS 190x45 |
Rims | Reserve 30|SL 29", 28h |
Hubs |
Front: i9 1/1, 15x110, Torque Cap, 28h Rear: i9 1/1, 12x148, XD, 28h |
Tires |
Front: Maxxis Dissector 29"x2.4"WT, 3C MaxxTerra, EXO, TR Rear: Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO, TR |
Bottom Bracket | SRAM DUB 68/73mm Threaded BB |
Crankset | SRAM GX Eagle 148 DUB, 32t |
Shifters | GX AXS Controller |
Rear Derailleur | SRAM GX AXS Eagle, 12spd |
Cassette/Freewheel | SRAM XG1275 Eagle, 12spd, 10-50t |
Chain | SRAM GX Eagle, 12spd |
Brakes | SRAM G2 RS |
Rotors | Avid Centerline 180mm |
Handlebars | Santa Cruz 35 Carbon Bar, 800mm |
Tape/Grips | Santa Cruz Bicycles House Grips |
Stem | Burgtec Enduro MK3, 42mm |
Headset | Cane Creek 40 IS Integrated Headset |
Seatpost | RockShox Reverb Stealth, 31.6 |
Saddle | WTB Silverado Medium CroMo |
Pedals | Sold Separately |
* Subject to change without notice.
