Trek Domane SLR 6 Gen 4

Trek Domane SLR 6 Gen 4
  • Color: Metallic Red Smoke to Blue Smoke Fade
  • Color: Deep Smoke
$7,999.99
Please select options
Order now and pick up in-store for free within 24 hours(see exceptions below). - A sales associate will contact you as soon as the item is available to pickup. - Some items may take up to 3 business days to transfer from another location and/or be assembled such as a boxed bike.

Details

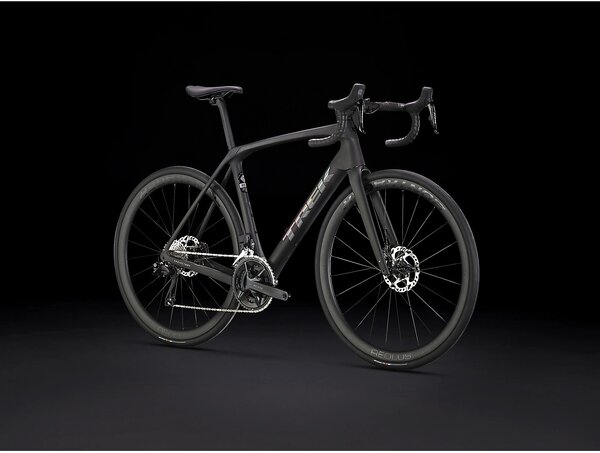

Domane SLR 6 is an ultralight carbon endurance road bike with cherry-picked components made for a fast, high-performance ride. You get our highest level OCLV Carbon frame with rear IsoSpeed, a wireless electronic Shimano 105 Di2 drivetrain for precision shifting, and OCLV Carbon wheels. Plus, it has an easy-access storage compartment for stowing ride essentials, and versatile 38c tire clearance to keep you floating on rough roads and light gravel.

It's right for you if...
You're looking for the real advantage of a bike that can soar on group rides, ride fast on long race days, and keep going when the road turns to gravel. You want the most advanced endurance road bike frame we offer, with carbon wheels and cherry-picked components that know how to perform when the pressure is on.

The tech you get
An ultralight and refined 800 Series OCLV Carbon frame and fork with rear IsoSpeed, integrated internal storage, and top tube mounts. It's equipped with a wireless Shimano 2x12 105 Di2 electronic drivetrain, powerful flat-mount disc brakes, Aeolus Pro 37 carbon wheels, and a Bontrager Pro IsoCore handlebar that reduces vibrations from the road by 20% over a standard carbon bar.

The final word
Our highest-end Domane carbon frame, with the precision shifting of Shimano 105 Di2. You're getting tech that provides a real advantage in comfort, reliability, and speed during all-day adventures, competitive group rides, or long races.

Why you'll love it
- The sleek all-new 800 Series OCLV Carbon frame saves weight and gives you more free speed thanks to updated Kammtail tube shapes
- Wireless Shimano 105 Di2 shifting won't break the bank and provides quick, precision shifts you can count on
- Road-smoothing rear IsoSpeed absorbs fatiguing bumps in the road to keep you comfortable through the longest miles and hardest race days
- A sleek internal storage compartment gives you a versatile spot to stow tools and gear, while top tube mounts let you cleanly bolt on a bag for all day adventures

Sizes:
SizeRider
Height
Inseam
47 152 - 158 cm
5'0" - 5'2"
71 - 75 cm
28" - 30"
50 158 - 163 cm
5'2" - 5'4"
74 - 77 cm
29" - 30"
52 163 - 168 cm
5'4" - 5'6"
76 - 79 cm
30" - 31"
54 168 - 174 cm
5'6" - 5'9"
78 - 82 cm
31" - 32"
56 174 - 180 cm
5'9" - 5'11"
81 - 85 cm
32" - 33"
58

180 - 185 cm
5'11" - 6'1"

84 - 87 cm
33" - 34"
60 185 - 190 cm
6'1" - 6'3"
86 - 90 cm
34" - 35"
62 190 - 195 cm
6'3" - 6'5"
89 - 92 cm
35" - 36"

Geometry

Geometry Chart:
Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size 700c 700c 700c 700c 700c 700c 700c 700c
A- Seat tube 42 45 47.5 50 52.5 54.8 56.7 58.6
B- Seat tube angle 74.6° 74.6° 74.2° 73.7° 73.3° 73.0° 72.8° 72.5°
C- Head tube length 11 13 14.5 16 17.5 19.5 22 24.5
D- Head angle 71.0° 71.1° 71.3° 71.3° 71.9° 72.0° 72.1° 72.1°
E- Effective top tube 50.9 51.9 53 54.2 55.4 56.7 57.9 59.3
G- Bottom bracket drop 8 8 8 8 7.8 7.8 7.5 7.5
H- Chainstay length 42 42 42 42 42 42.5 42.5 42.5
I- Offset 5.3 5.3 5.3 5.3 4.8 4.8 4.8 4.8
J- Trail 6.1 6 5.9 5.9 6.1 6 5.9 5.9
K- Wheelbase 98.6 99.6 100.3 101 100.8 102.2 103.2 104.2
L- Standover 68.6 71.6 73.5 75.4 77.6 79.6 81.7 83.5
M- Frame reach 36.4 36.8 37.1 37.4 37.7 38 38.3 38.6
N- Frame stack 52.7 54.6 56.1 57.5 59.1 61.1 63.2 65.6
Stem length 70 80 90 90 100 100 110 110
Saddle rail height min
(w/short mast)
55.5 58.5 61.5 64 67 69 71 73
Saddle rail height max
(w/short mast)
62 65 68 70.5 73.5 75.5 77.5 79.5
Saddle rail height min
(w/tall mast)
58.5 61.5 64.5 67 70 72 74 76
Saddle rail height max
(w/tall mast)
65 68 71 73.5 76.5 78.5 80.5 82.5

Specs

Frame 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Fork Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Wheels Front: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
Rear: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, Shimano 11/12-speed freehub, 142x12mm thru axle
Rims Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Axles Bontrager Switch thru axle, removable lever
Tires Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c
Bottom Bracket Praxis, T47 threaded, internal bearing
Crankset Size: 47 Shimano 105 R7100, 50/34, 165mm length
Size: 50, 52 Shimano 105 R7100, 50/34, 170mm length
Size: 54, 56 Shimano 105 R7100, 50/34, 172.5mm length
Size: 58, 60, 62 Shimano 105 R7100, 50/34, 175mm length
Shifters Shimano 105 R7170 Di2, 12 speed
Front Derailleur Shimano 105 R7150 Di2, braze-on, down swing
Rear Derailleur Shimano R7150 Di2, 36T max cog
Cassette/Freewheel Shimano 105 7100, 11-34, 12 speed
Chain Shimano SLX M7100, 12 speed
Rotors Shimano SM-RT70, centerlock, 160mm
Handlebars Size: 47 Bontrager Pro IsoCore VR-SF, 38cm
Size: 50, 52 Bontrager Pro IsoCore VR-SF, 40cm
Size: 54, 56 Bontrager Pro IsoCore VR-SF, 42cm
Size: 58, 60, 62 Bontrager Pro IsoCore VR-SF, 44cm
Tape/Grips Bontrager Supertack Perf tape
Stem Size: 47 Bontrager RCS Pro, 7 degree, 70mm length
Size: 50 Bontrager RCS Pro, 7 degree, 80mm length
Size: 52, 54 Bontrager RCS Pro, 7 degree, 90mm length
Size: 56, 58 Bontrager RCS Pro, 7 degree, 100mm length
Size: 60, 62 Bontrager RCS Pro, 7 degree, 110mm length
Seatpost Size: 47, 50, 52, 54, 56 Domane carbon seatpost, KVF2 shaping, 20mm offset, 280mm length
Size: 58, 60, 62 Domane carbon seatpost, KVF2 shaping, 20mm offset, 320mm length
Saddle Size: 47, 50, 52 Bontrager P3 Elite, short nose, 155mm width
Size: 54, 56, 58, 60, 62 Bontrager P3 Elite, short nose, 145mm width
Pedals Sold separately
Accessories & Extras Charging cable included, Bontrager BITS Internal Frame Storage Bag

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Metallic Red Smoke to Blue Smoke Fade / 54cm 768682546802 5280877 DOM43882282E
Metallic Red Smoke to Blue Smoke Fade / 56cm 768682546888 5280878 DOM43367352E
Metallic Red Smoke to Blue Smoke Fade / 58cm 768682546642 5280879 DOM43238329E
Metallic Red Smoke to Blue Smoke Fade / 60cm 768682546703 5280880 DOM43608412E
Deep Smoke / 50cm 768682526545 5280867 DOM21515361E
Deep Smoke / 52cm 768682526262 5280868 DOM21274743E
Deep Smoke / 54cm 768682526361 5280869 DOM21874618E
Deep Smoke / 56cm 768682526446 5280870 DOM21836015E
Deep Smoke / 58cm 768682526422 5280871 DOM21251233E
